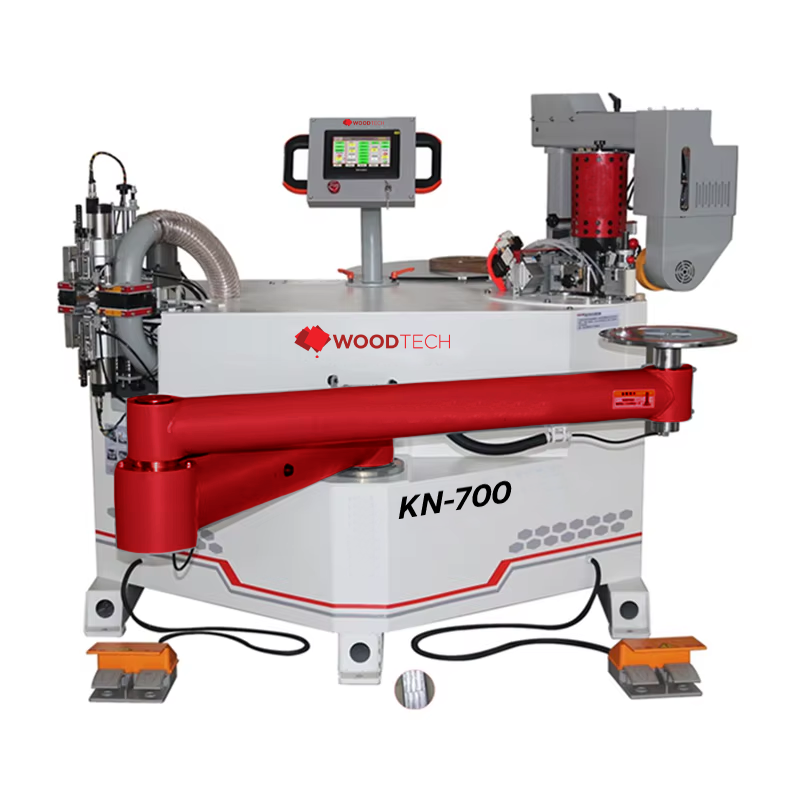

KN700-3 Edgebander

Engineered for precision and efficiency, the KN-700 is a high-performance automatic edgebander designed specifically for curved panels — including round, oval, and rounded rectangles. With laser-guided alignment (±0.3mm), servo-driven accuracy, and support for both PUR and EVA glues, it delivers seamless results without manual trimming.

Key features include:

  • Automatic feeding and laser docking for complex shapes

  • One-click glue discharge (PUR/EVA) with 2600ml heated glue pot

  • Fast, quiet servo motor and adjustable feed speed (0–30cm/s)

  • Four-point cleaning system with programmable spray intervals

  • Touchscreen interface with storage for 20 panel profiles

  • Integrated air tank for stable pneumatic performance

Ideal for shops demanding high output, tight tolerances, and minimal rework — the KN-700 makes curved edgebanding faster, smarter, and more consistent.



Feature
Compressed Air0.6 - 0.8 MPA
Power6.5kW
Feed Speed0 - 30cm/sec (Edgebanding)
0 - 24cm/sec (Trimming)
Edge Thickness0.5mm - 3mm
Edge Width14mm - 70mm
Automatic Laser Docking Precision +- 0.3mm
Panel Thickness12mm - 60mm
Panel Size<= 2400mm (Round)
<= 1200mm x 2400mm (Rectangle)
<= 1400mm x 1600mm (L Shaped)
Glue TypeGranulated EVA
Glue Pot Temperature110 - 210
Glue Pot Volume2600ml
Trimming14mm - 70mm (on 2 sides)
<= 14mm (single side)
Size1870mm x 1400mm x 1530mm
