Wood Tech APEX TE Contour Edgebander

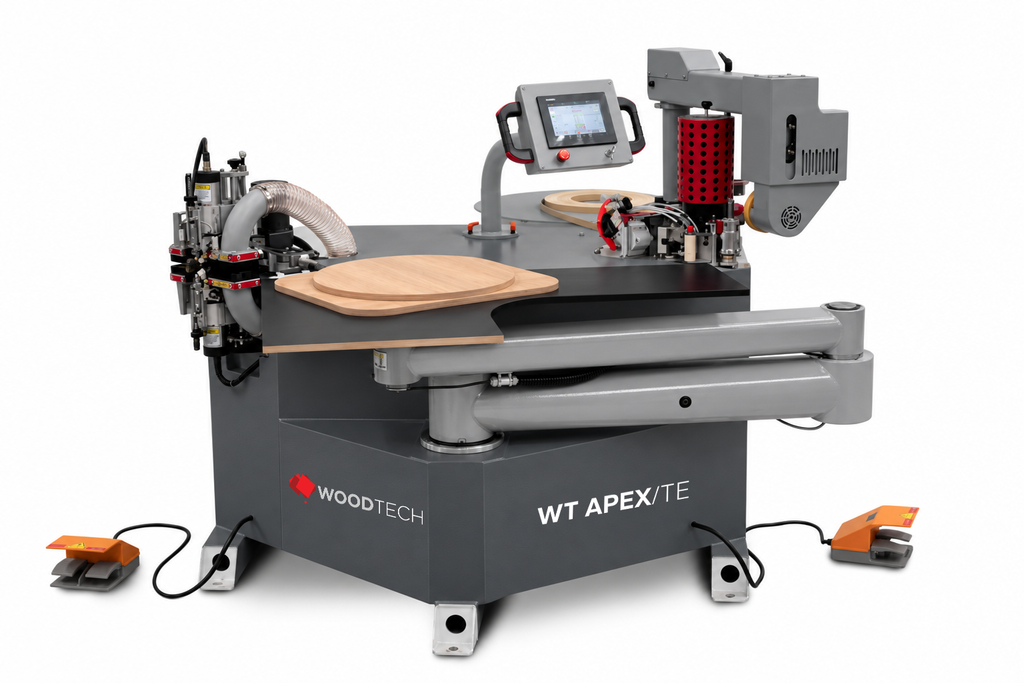

APEX/TE Contour Edgebander

Beyond Straight Edges. Precision Edgebanding for Every Curve.

The APEX/TE Contour Edgebander brings precision, flexibility and advanced finishing capabilities to the processing of curved, circular and irregular-shaped panels. Designed for furniture manufacturers, cabinetmakers and specialised joinery workshops, the APEX/TE provides an efficient solution for applying and finishing edgebanding on complex shapes that conventional straight-line edgebanders cannot accommodate.

Featuring a generous 4,000 × 4,000 mm working area, the APEX/TE combines controlled EVA glue application, laser-assisted docking, contour-following trimming and automated feeding assistance. Its versatile processing capabilities accommodate circular panels up to 2,400 mm in diameter, rectangular panels up to 1,200 × 2,400 mm and L-shaped components up to 1,400 × 1,600 mm.

With support for tight internal curves down to a 20 mm radius, the APEX/TE makes it possible to achieve refined edge finishes on intricate furniture designs, curved cabinetry and custom-shaped components.

Key Features & Benefits

  • Precision Contour Edgebanding: Processes curved, circular and irregular-shaped panels, including internal radii as small as 20 mm.

  • Large Working Area: A 4,000 × 4,000 mm working area provides flexibility for processing oversized and complex components.

  • Laser-Assisted Precise Docking: Integrated laser ranging supports accurate edging alignment with a specified docking range of ±0.3 mm.

  • Controlled EVA Glue Application: A 2,600 ml Teflon-coated glue pot with adjustable temperatures from 110°C to 210°C supports consistent adhesive application.

  • Versatile Edgebanding Materials: Accommodates PVC, ABS and melamine edging, with customised veneer applications available. Supports edging thicknesses from 0.5–3 mm and widths from 14–70 mm.

  • Contour Trimming & Finishing: A rotating trimming system with ±15° adjustment incorporates trimming, scraping and cleaning functions to refine finished edges.

  • Automatic Feeding Assistance: An auxiliary feeding device helps align shaped and closed-contour panels with the glue roller for smoother processing.

  • Flexible Material Handling: A suction-cup stacking arm extends to 2,250 mm with a maximum loading capacity of 100 kg.

  • Integrated Cleaning: Dual liquid-based cleaning devices support the final edge-finishing process.

Engineered for Creative Freedom

Traditional straight-line edgebanders are suited to rectangular panels, but modern furniture and interior designs increasingly incorporate curves, rounded corners and unique profiles. The APEX/TE expands the possibilities of edge finishing by accommodating these shapes through a dedicated contour-processing system.

Its combination of precision gluing, laser-assisted alignment, adjustable trimming and automated material guidance allows manufacturers to work confidently with both simple curves and complex closed shapes.

**From curved cabinetry and circular tabletops to custom furniture components and architectural joinery, the APEX/TE gives manufacturers the flexibility to bring more ambitious designs i

Feature
Compressed Air0.6 - 0.8 MPA
Power6.5kW
Feed Speed0 - 30cm/sec (Edgebanding)
0 - 24cm/sec (Trimming)
Edge Thickness0.5mm - 3mm
Edge Width14mm - 70mm
Automatic Laser Docking Precision +- 0.3mm
Panel Thickness12mm - 60mm
Panel Size<= 2400mm (Round)
<= 1200mm x 2400mm (Rectangle)
<= 1400mm x 1600mm (L Shaped)
Glue TypeGranulated EVA
Glue Pot Temperature110 - 210
Glue Pot Volume2600ml
Trimming14mm - 70mm (on 2 sides)
<= 14mm (single side)
Size1870mm x 1400mm x 1530mm
