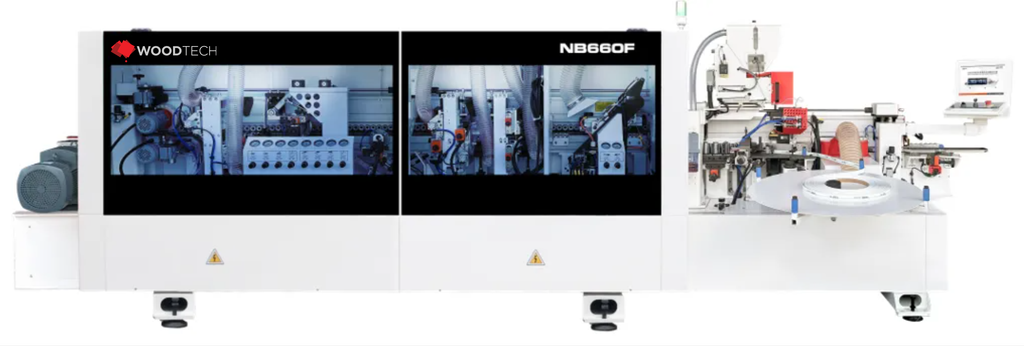

Wood Tech NB660F Automatic Edgebander
Precision Edgebanding. Exceptional Versatility. Built for Narrow Panels.
The Wood Tech NB660F Automatic Edgebander delivers precision edge finishing with the flexibility to process both standard and narrow workpieces. Designed for professional cabinetmakers, joinery workshops and furniture manufacturers, the NB660F combines advanced feeding technology, automated processing and a comprehensive range of finishing stations in one streamlined machine.
Its specialised narrow-panel feeding system features compact pressure rollers, additional support rollers and a sliding feed guide, allowing the machine to process narrow components with short ends as small as 40 mm. This makes it particularly suited to cabinetry, furniture components and other applications where smaller workpieces require accurate, consistent edgebanding.
From pre-milling and panel pre-heating through to controlled glue application, precision trimming, corner rounding, scraping and buffing, the NB660F handles the complete edgebanding process in a single pass.
Key Features & Benefits
-
Specialised Narrow-Panel Processing: Compact dual-row pressure rollers, assistance rollers and a sliding feeding guide provide stable feeding of narrow workpieces.
-
Precision Pre-Milling: Twin-motor pre-milling prepares panel edges before glue application for a consistent bonding surface.
-
Advanced Pre-Melt Gluing: An upper glue tank, compact lower glue pot, automatic glue pumping and independent temperature controls support consistent adhesive application.
-
Panel Pre-Heating: Warms panel edges before gluing to support effective adhesive bonding, particularly in colder or damp conditions.
-
Automatic Corner Rounding: A dual-motor, four-tool system produces smooth, rounded corners for a professional finished appearance.
-
Complete Edge Finishing: Rough trimming, fine trimming, edge scraping, flat scraping and dual buffing stations deliver a clean, refined finish.
-
Automatic Pressure-Beam Adjustment: Touchscreen-controlled height adjustment simplifies setup when changing workpiece thickness.
-
Intuitive Touchscreen Operation: A 10-inch touchscreen provides independent control of processing stations, quick start/stop functions and daily production information.
-
Heavy-Duty Construction: A rigid, CNC-processed steel frame and aluminium pressure beam provide stability throughout operation.
Designed for Professional Production
The NB660F is engineered to simplify edgebanding without compromising finishing quality. Its automated processing stations reduce the need for separate manual finishing operations, while the precision conveyor and workpiece support systems maintain stable panel movement.
An enclosed machine body with sound-absorbing material helps reduce operating noise, while integrated dust extraction connections, automatic thickness detection and emergency-stop controls support a practical workshop environment.
From everyday cabinetry to demanding narrow-component applications, the Wood Tech NB660F provides the control, versatility and finishing capability needed for professional edgebanding.
| Feature | Specification |
| Model | Nanxing NB660F |
| Minimum panel size (long edge) | 350 × 40 mm |
| Minimum panel size (short edge) | 40 × 120 mm |
| Minimum panel length | 120 mm (track opening ≥200 mm) |
| Minimum panel width | 40 mm |
| Panel thickness | 9–60 mm |
| Edge tape thickness | 0.4–3 mm |
| Feed speed | 16 / 20 / 24 m/min |
| Dust outlets | 5 × 125 mm diameter |
| Dust extraction requirement | 3980 m³/h at 30 m/s |
| Compressed air consumption | 255 L/min |
| Compressed air inlet | 19 mm diameter |
| Power | 25.2 kW |
| Dimensions (L × W × H) | 5960 × 820 × 1850 mm |
